Automatic High Speed Intelligent Paper Cup Coffee Cup Machine (DEBAO

Basic Info.

Model NO.	DEBAO-100S
Certification	CE
Customized	Depends
Condition	New

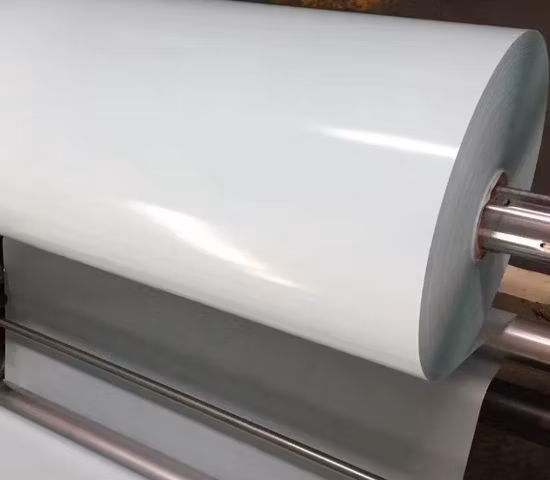

Paper Materials	Single PE/ Double PE/ PLA
Paper Grammage	150-300 GSM
Rated Power	Three-Phase 380V, 20kw
Transport Package	Wooden Case
Specification	2600 x 1600 x 1900mm
Trademark	NEWTOP
Origin	Zhejiang, China
HS Code	8441309000
Production Capacity	80 Sets Per Month

Product Description

Disposable High Speed Paper Cup Forming Machine-----------
Debao 100S:
DEBAO-100S intelligent paper cup machine adopts desktop layout, insulate the transmission part and mold. The transmission part is arranged in the frame box under the machine table, lubrication spray automatically. 100S uses the vertical axis transmission structure, bucket cylinder indexing mechanism and gear drive. On table setting each mold which makes easy clean and maintain. The electric parts adopt PLC control, photoelectric tracking and monitoring the whole process, also the servo control feeding. The capacity is up to 100-120pcs per min. Suitable for 2.5 to 12oz hot &cold paper cups.
Parameter:

Model	DEBAO-118D	DEBAO-100S
Weight	2700KG	2500KG
Packing Specifications	2600 x 1600 x 2100mm	2600 x 1600 x 1900mm
Cup counting holder packing specifications	1230 x 610 x 1900mm	1230 x 610 x 1900mm
Rated Power	three-phase 380V, 20KW	three-phase 380V, 20KW
Air Supply Requirement	0.6-0.8MPa,0.4cube/min	0.6-0.8MPa,0.4cube/min
Max Capacity	140 pcs/min	140 pcs/min
Paper Materials	Single PE/ Double PE/ PLA	Single PE/ Double PE/ PLA
Paper Grammage	150-300 gsm	150-300 gsm
Papaer Cup Capacity	2.5 - 12 oz
Paper Cups Specifications	(D1)50-85mm (H)40-110mm	(D1)50-85mm (H)40-110mm
	(D2)35-65mm (h)5-12mm	(D2)35-65mm (h)5-12mm

1.The machine adopts open-type , interrupted division design , gear drive , longitudinal axis design . So they can reasonably distribute each part function

2.The whole machine adopts Spray lubrication , thus reduce the parts abrade

FAQ
1.what's your product range?
Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.

2.What size of the cup/bowl you can make?
We can make paper cups/bowls from 2.5OZ-45OZ.

3.Are you a manufacturer?
Yes,We have been in making paper cup machine over 15 years.

4.what about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?
--Quantity

--What's the detailed size (top diameter,bottom diameter,and height)

--What's the paper thickness

6.How can we ensure the product is safe for food package
(1) the virgin wooden pulp based paper with SGS test report by European and FDA regular with FSC certification

(2) water base ink , flexo. Printing way , no smell

(3) virgin LDPE inported from Korea, Japan ,and Qatar … with SGS test report

(4) factory workshop is docerated by GMP Standard request .

7.what's your advantages ?
--15 years experience:We have been in making paper cup machine for 15 years.

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
